广东前润科技

印刷配套产品

集曝光、洗版、烘干于一体,性能稳定,操作简单,为三合一全自动晒版机

新崎晒版机,集爆光,洗版,烘干三合一

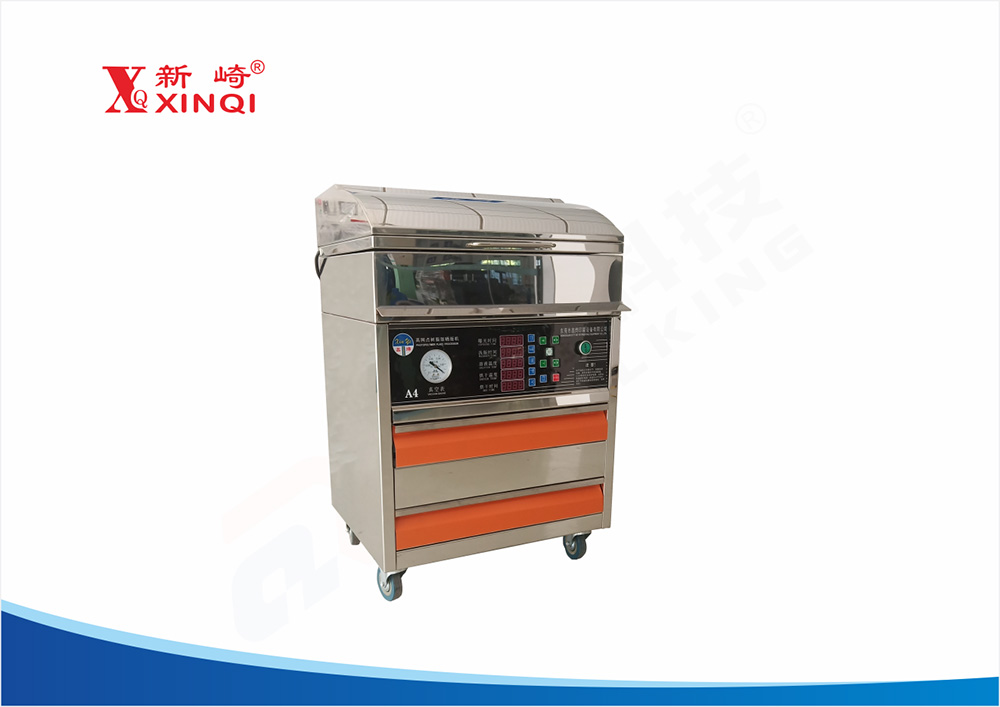

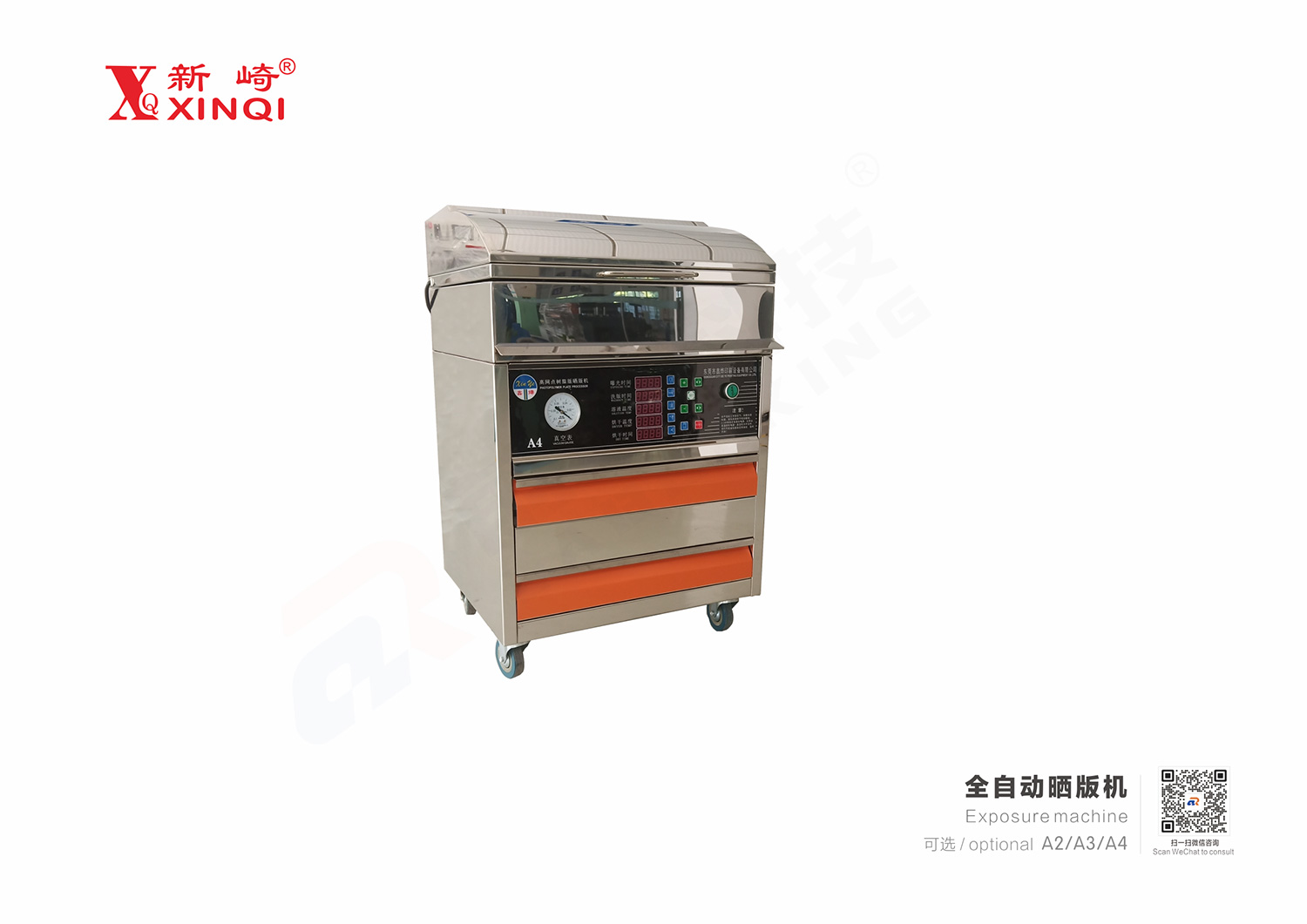

全自动晒版机

产品简介:自动控制曝光时间、洗版时间、烘干时间、真空度及温度,稳定保障树脂版晒版品质,适用于高网线感光树脂印刷版制作,集曝光、洗版、烘干于一体,性能稳定,操作简单,为三合一全自动晒版机。

应用领域:食品、电子、药品

非标定制:

服务保障:非人为损坏提供一年售后服务,免费技术支持,终身提供服务!

联系我们:销售热线:180 2823 5969 客服热线:0769-85963666

注:购买前润标签印刷产品的用户可享受免费技术指导、技术培训、一年质保、终生维护服务



产品图片 / Product Images




产品介绍 / Product Introduction

1、自动控制曝光时间、洗版时间、烘干时间、真空度及温度,稳定保障树脂版晒版品质,适用于高网线感光树脂印刷版制作。
      Automatically control exposure time, plate washing time, drying time, vacuum degree and temperature to ensure the quality of resin plates. It is specially suitable for manufacturing high-line screen photosensitive resin printing plates.
2、集曝光、洗版、烘干于一体,性能稳定,操作简单,为三合一全自动晒版机。
     It is a three-in-one automatic plate maker integrating exposure, plate washing and drying, featuring stable performance and simple operation.
产品特点 Product Features
1、集成曝光、洗版、烘干三大功能。
     Integrate three functions: exposure, plate washing and drying.
2、搭载原装进口飞利浦 UVA 紫外线灯管。
     Adopt original imported PHILIPS UVA ultraviolet lamps.
3、配备高效专业电子镇流器。
     Equipped with high-efficiency professional electronic ballast.
4、循环热风、恒温定时烘干。
     Circulating hot air drying with constant temperature and timing function.
5、版材自动贴合,作业便捷高效。
     Automatic plate adhesion for convenient operation.
6、一体式紧凑结构,占地面积小,操作简易。
     Integrated structure, small floor area and easy operation.
产品结构配置 Structural Configuration
1、40W 飞利浦紫外线晒版灯管 / 40W PHILIPS ultraviolet exposure lamp
2、3AAA336 电子镇流器 / 3AAA336 electronic ballast
3、大理石超平吸气板 / Marble ultra-flat suction plate
4、日本进口真空吸气膜 / apan imported vacuum suction film
5、1.8P 红宝石真空泵 / 1.8P Ruby vacuum pump
6、日本进口自粘耗材 / Japan imported self-adhesive material
7、日本进口 1010 丝毛刷 / Japan imported 1010 wire brush
8、双马达平磨版驱动装置 / Two-motor driven flat plate grinding device
9、整机全不锈钢外壳 / Full stainless steel body shell




技术参数 / Technical Parameters

设备名称Equipment Name 新崎全自晒版机/XINQI Three-in-One Automatic Plate Maker
功能 Functions 集成曝光、洗版、烘干三大功能 /Integrates three functions: exposure, plate washing and drying.
机型 Type A4 A3 A2
最大洗版面积 Max Plate Washing Area 400X250 530X420 600X450
机械尺寸 Machine Dimension (L×W×H) 600X450x750mm 740X620X1000mm 760X620X1180mm
机械重量 Machine Weight 60 kg 70 kg 160 kg
机械电源 Machine Power Supply 220V / 0.3kW 220V / 0.6kW 2220V / 1.0kW
操作语言 / Manipulation language 中文/英文 /  Chinese/English 中文/英文 /  Chinese/English 中文/英文 /  Chinese/English
注:

1.产品外观以实际产品为准,技术参数与型号如有变动,恕不另行通知。
The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.

2.了解更多前润科技产品信息请进入产品中心。服务热线:18028235969
For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969




行业应用 / Industry Applications

  应用领域/Application Fields 不干胶、吊牌、保护膜、丝带、铝箔等卷装材料。
       Self-adhesive labels, hang tags, protective films, ribbons, aluminum foils and other roll materials.
  行业应用 / Industry Application 食品、电子、药品
       Food, Electronics, Pharmaceuticals.
