机组式柔版印刷机

S6-370机组式柔版标签印刷机集高效、精准、便捷、多功能于一体,可满足不同行业的标签印刷需求,为企业降低生产成本、提升生产效率提供有力支撑。

前润S6系列机组式柔版标签印刷机

S6机组式柔版印刷机

产品简介:S6-370 机组式柔版标签印刷机集高效、精准、便捷、多功能于一身,机型结构布局合理,运行平稳耐用。搭载精准套控系统,印刷层次细腻、图案清晰,套印精度高且品质稳定。设备适配多种标签基材与印刷工艺,换版调试简便、操作人性化,灵活满足各行业定制化标签生产需求。助力企业精简工序、节省耗材成本,大幅提升产能与产品良品率。

应用领域:条形码、玩具薄膜、食品包装、烟包酒标、物流商超、医药电子、电子电池、日化等印刷领域

非标定制:

服务保障:非人为损坏提供一年售后服务,免费技术支持,终身提供服务!

联系我们:销售热线:180 2823 5969 客服热线:0769-85963666

注:购买前润标签印刷产品的用户可享受免费技术指导、技术培训、一年质保、终生维护服务

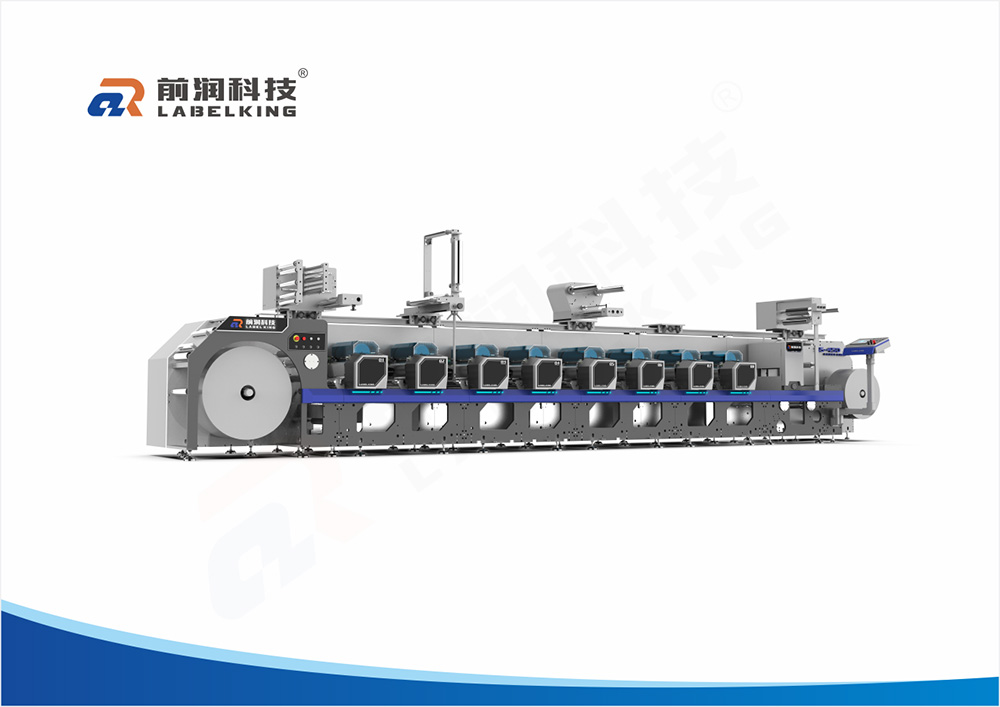

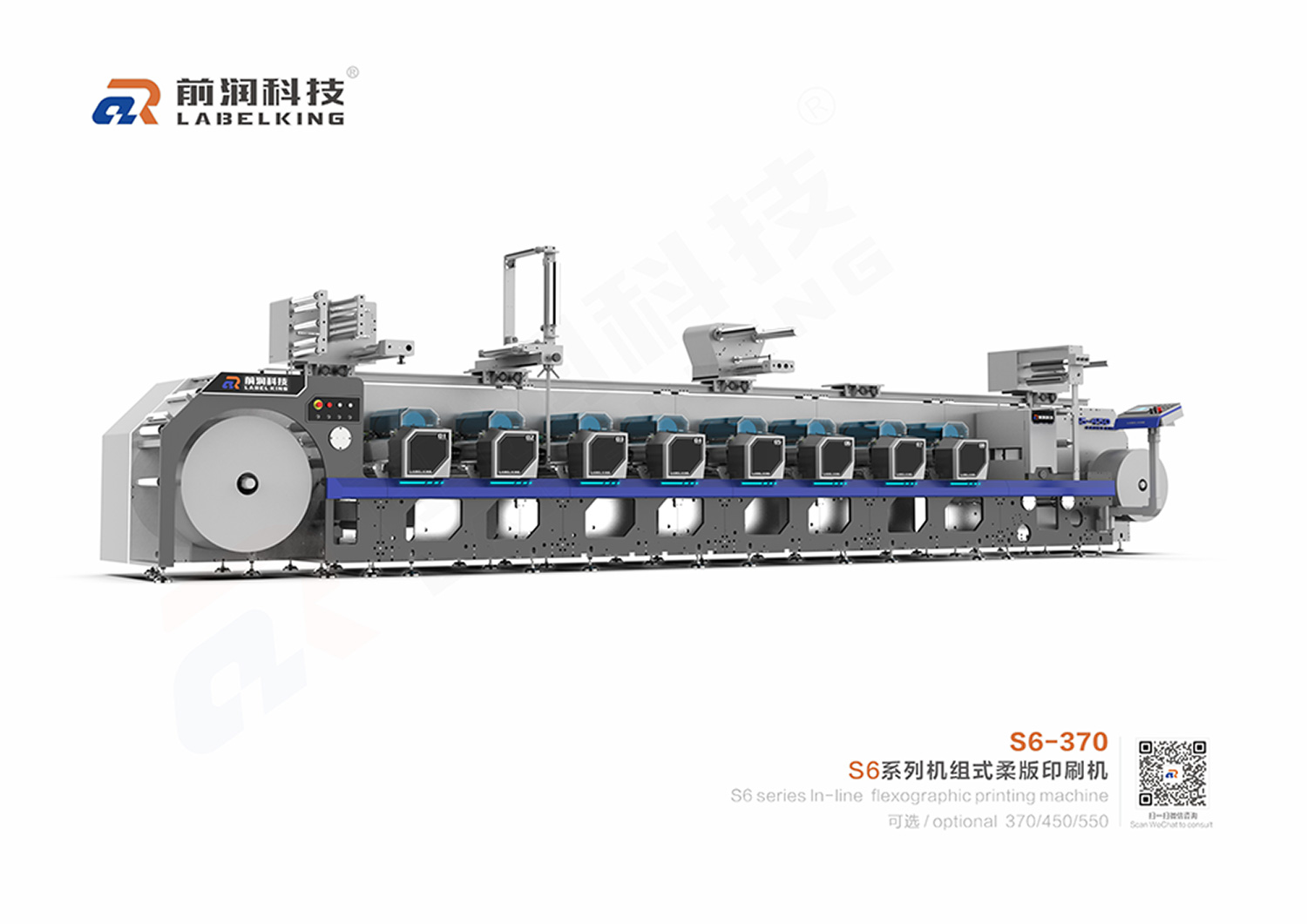

产品图片 / Product Images




产品介绍 / Product Introduction

1. 无轴传动:采用独立双伺服电机驱动,支持在线自动预套印和追套印功能,调校过程简便高效,大幅减少人工操作成本,确保印刷过程稳定精准,避免套印偏差。
Shaftless Drive: Adopts independent dual servo motor drive, supports online automatic pre-registration and over-registration functions, the adjustment process is simple and efficient, greatly reducing manual operation costs, ensuring stable and accurate printing process and avoiding overprinting deviation.

2. 高效印版滚筒:采用花瓣式结构设计,换版操作快捷便捷,无需进行大幅调节,有效避免墨杠问题出现,既提升了换单效率,又保障了印刷品质的一致性。
Efficient Plate Cylinder: Adopts petal-shaped structure design, plate changing operation is fast and convenient, no need for large-scale adjustment, effectively avoiding ink bar problems, which not only improves the order change efficiency, but also ensures the consistency of printing quality.

3. 大尺寸承印辊:配备专业水冷装置,对无支撑薄膜材料具有较好的适应性,可广泛应用于多种薄膜材料的印刷,包括PET、OPP、CPP、PP等,进一步拓宽设备的适用范围。
Large-Size Anvil Roller: Equipped with a professional water cooling device, it has good adaptability to unsupported film materials, and can be widely used in the printing of various film materials, including PET, OPP, CPP, PP, etc., further expanding the application range of the equipment.

4. 智能不停机系统:可选配不停机收放卷系统,支持手动与自动接纸两种模式,有效减少生产中断,显著提高生产效率;搭载全视觉自动套印系统,可实现自动套印及数据保存,返单时一键调取相关参数即可自动套准,大幅缩短返单生产周期。
Intelligent Non-Stop System: Optional non-stop unwinding and rewinding system, supporting both manual and automatic paper connection modes, effectively reducing production interruptions and significantly improving production efficiency; equipped with a full-visual automatic overprinting system, it can realize automatic overprinting and data storage, and can automatically register by calling relevant parameters with one click when reordering, greatly shortening the reorder production cycle.

5. 多功能印刷:以柔版印刷为核心,全面支持冷烫、覆膜、除胶、多层标签、折页标签、在线品检、模切等多种工艺,同时可根据生产需求,选配丝印、喷码、凹版等联机功能,实现多道工序一站式完成,无需额外衔接设备。
Multifunctional Printing: Taking flexographic printing as the core, it fully supports various processes such as cold stamping, lamination, glue removal, multi-layer labels, folding labels, online inspection, die-cutting, etc. At the same time, it can be equipped with optional online functions such as screen printing, inkjet printing and gravure according to production needs, realizing one-stop completion of multiple processes without additional connection equipment.

6. 便捷收放料:配备独立料卷升降机构,采用自动化控制模式,有效减轻操作人员的劳动强度,提升收放料操作的便捷性与效率,保障生产流程顺畅有序。
Convenient Unwinding and Rewinding: Equipped with an independent material roll lifting mechanism, adopting automatic control mode, effectively reducing the labor intensity of operators, improving the convenience and efficiency of unwinding and rewinding operations, and ensuring the smooth and orderly production process.

前润S6系列机组式柔版标签印刷机集高效、精准、便捷、多功能于一体,可满足不同行业的标签印刷需求,为企业降低生产成本、提升生产效率提供有力支撑。
In summary, the Qianrun S6-370 unit-type flexographic label printing machine integrates high efficiency, precision, convenience and multi-function, which can meet the label printing needs of different industries and provide strong support for enterprises to reduce production costs and improve production efficiency.




技术参数 / Technical Parameters

材料宽度 Substrate Width Max. 370 mm
印刷宽度 /  Printing Width: Max. 370 mm
印刷色组 / Printing Stations: 10
印刷纸张厚度范围 / Paper thickness: 35-350gsm
印刷重复周长范围 /  Print Repeat: 222-620mm
机器机械速度 /  Print Repeat: 200 m/min
机器机械速度 / Machine Speed: 200 m/min
放卷直径:/ Unwinder Reel Diameter Φ1000 毫米
收卷直径 /  Rewinder Reel Diameter: Φ1000 毫米
齿轮规格  /  Rewinder Reel Diameter: 1/8“,齿距3.175mm /  1/8“,pitch3.175mm
干燥系统 / 1/8“,pitch3.175mm 可选UV汞灯、LED UV、热风干燥 /
Optional UV mercury lamp, LED UV, Hot air drying
套准精度:/  Accuracy: ≤±0.10mm
供电需求 /  Power supply: 380VAC±5%,三相50/60赫兹 / 3-phase 50/60 Hz
操作语言 / Manipulation language 中文/英文 /  Chinese/English
备注: 1.产品外观以实际产品为准,技术参数与型号如有变动,恕不另行通知。
The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.
2.了解更多前润科技产品信息请进入产品中心。服务热线:18028235969
For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969



行业应用  / Industry Applications

  标签类型/Suitable products:
      特殊酒标:红酒酒标、白酒标、白兰地洋酒等; Special wine labels: red wine labels, white wine labels, brandy and other foreign wine labels, etc.
      家居:厨房、卫浴间天花吊顶; Home applications: kitchen and bathroom ceiling materials.
      工业:文具盒、砂轮标盒等; Industrial applications: pencil cases, grinding wheel label boxes, etc.
      医药:口服胶囊固定板密封铝铂、药罐密封包装; Pharmaceutical applications: oral capsule blister sealing foil, medicine can sealing packaging.
      食品:罐头口密封包装; Food applications: can lid sealing packaging.
  应用领域/Application Fields 不干胶标签 、食品包装、烟包酒标、物流商超、医药行业、电子行业、日化等印刷领域
       Adhesive Labels、Food Packaging、Cigarette & Wine Labels、Logistics & Supermarkets、Pharmaceutical Industry、Electronics Industry、Daily Chemicals & Other Printing Applications
  非标定制 / Non-Standard Customization Service 可根据客户要求定做机型RS260/340/460 2-22色
       Customizable models (RS260/340/460)8-12色 available according to customer requirements.



产品视频 / Product Videos



200 m/min

Max 370毫米

售后保障

2h 报修2小时反馈结果
2h电话回复
8h 疑难问题8H内提供解决方案
8h提供解决方案
24h 24-48h内工程师到达贵司
48h技术人员到达

公司简介

公司图片

2023年,前润投入巨资打造一站式柔印机械解决方案,专注于柔版、凹版、数码、圆筒丝网印刷设备的研发与制造。我们紧跟国际一流工艺技术,推出可自由组合各种印刷工艺的多功能印刷设备,在行业中始终保持领先地位。 我们秉承"以客户为中心、以市场为导向、以技术为支撑、以管理为保障"的企业理念,以"创前沿,润无声"为信念,矢志不渝地追求技术创新与卓越品质,立志引领未来标签印刷设备行业迈向新的里程碑。 前润的足迹遍布全球,国内外设有多家分公司和办事处,产品远销多个国家和地区,赢得了国内外众多知名企业的青睐与合作。我们秉承“以客户为中心、以市场为导向、以技术为支撑、以管理为保障”的企业理念,以“创前沿,润无声”为信念,矢志不渝地追求技术创新与卓越品质,立志引领未来标签印刷设备行业迈向新的里程碑。我们坚守匠心制造,对印刷艺术怀有执着追求与无限热爱。在“拼搏进取 精益求精 开拓创新、感恩利他”的企业精神的引领下,为客户提供高效、稳定、环保的印刷解决方案。


In 2023, Qianrun invested heavily in creating one-stop flexographic printing machinery solutions, specializing in the R&D and manufacturing of flexographic, gravure, digital, and cylindrical screen printing equipment. By integrating cutting-edge international technologies, the company has launched versatile printing systems that combine multiple processes, maintaining its leadership in the industry.We adhere to the corporate philosophy of "customer-centric, market-oriented, technology-supported, management-guaranteed", and the belief of "the more innovations the more profits", and are committed to the pursuit of technological innovation and excellent quality, determined to lead the future label printing equipment industry to a new milestone. Qianrun's sales network are all over the world, with many branches and offices at home and abroad. Its products are sold to many countries and regions, and have won the favor and cooperation of many well-known companies at home and abroad. We adhere to the corporate philosophy of "customer-centric, market-oriented, technology-supported, management-guaranteed", and the belief of "the more innovations the more profits", and are committed to the pursuit of technological innovation and excellent quality, determined to lead the future label printing equipment industry to a new milestone. We adhere to the ingenuity of manufacturing, and have a passion for printing craftsmanship. Guided by the corporate spirit of "striving for progress, striving for excellence, pioneering and innovating, and being grateful and altruistic", we provide customers with efficient, stable and environmentally friendly printing solutions.
