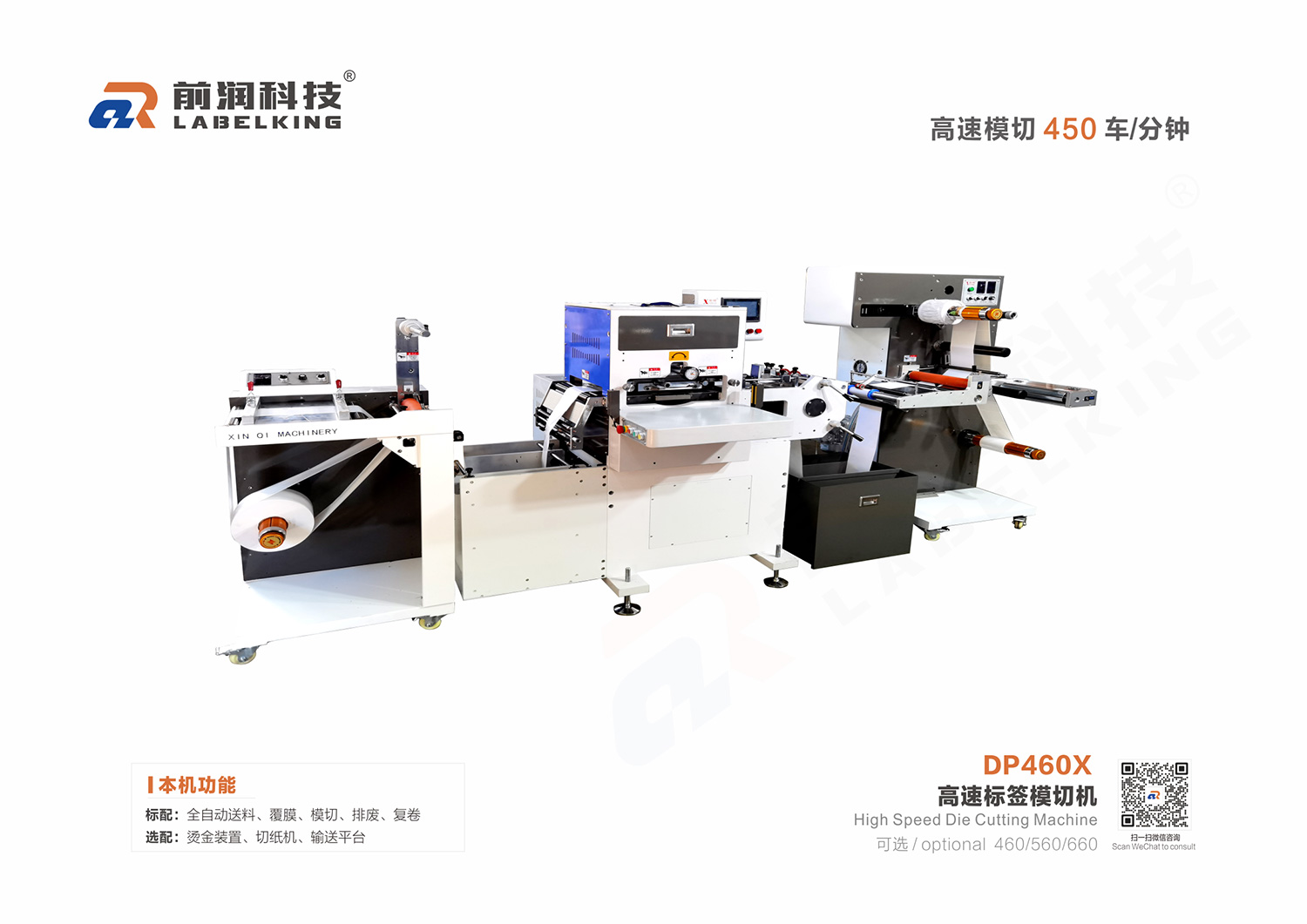

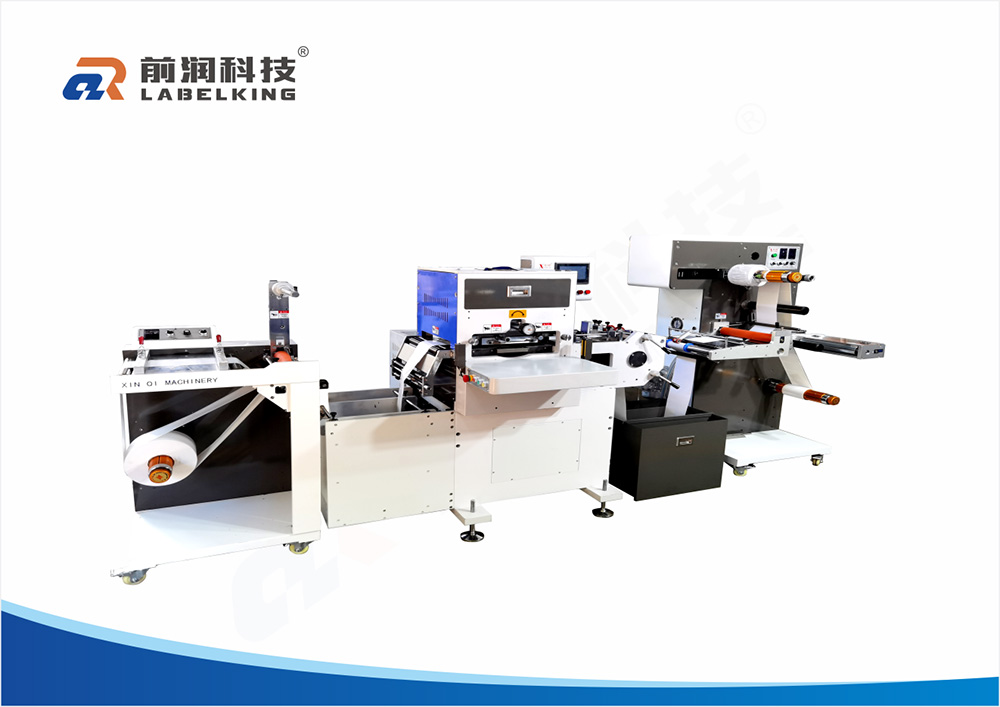

产品图片 / Product Images

产品介绍 / Product Introduction

1、操作简便、高速灵活、套位精确。
Simple operation, high speed & flexibility, and precise registration.

2、拥有先进的自动控制系统，无纸即自动停机，计张到设定值即自动停机，CNC 电脑伺服拉纸系统，可二次模切。
Equipped with an advanced automatic control system, it shuts down automatically when out of material or reaching the preset quantity. The CNC servo paper feeding system supports secondary die-cutting.

3、采用斜背式设计、模切在机械动作以渐进的方式接触，使模切压力得以平均、模切可调整左右、前后、旋转角度。
Adopts inclined-back structure design. The die-cutting unit makes gradual mechanical contact to ensure even cutting pressure; the die-cutting position is adjustable in left-right, front-back and rotation angle.

4、内置独立集中供油系统，保证高速运转噪音小，无磨损。
Built-in independent centralized oil supply system ensures low noise and zero wear during high-speed operation.

5、采用高速系统集中触摸屏控制。
Adopts centralized touch screen control for high-speed system.

6、免用传统压纸板压料，漩涡式真空吸料，确保纸张张力恒定及不刮花材料。
No traditional pressure board required. Vortex vacuum suction feeding keeps constant material tension and avoids surface scratching.

技术参数 / Technical Parameters

设备名称Equipment Name	前润DP460X单座/双座高速数控模切机/Qianrun DP460X Single/Double Station High-speed CNC Die-cutting Machine
功能 Functions	自动送纸 -覆膜 - 模切 -（烫金）-排废 -复卷 -（切片） Automatic feeding-Laminating-Die-cutting-(Hot stamping)-Waste removing-Rewinding-(Slitting)
机型 Type	单座/双座 / Single Station / Double Station
模切精度 Die-cutting Accuracy	±0.1mm
最大模切面积 Maximum Die-cutting Area(mm)	350x350mm
最大进纸宽度 Maximum Feeding Width(mm)	450mm
最大模切长度 Maximum Die-cutting Length(mm)	470mm
最高模切速度 Maximum Die-cutting Speed(mm)	550/h 4550 strokes per minute
机械功率 Power/（V/kw）	380V/10kw
机械尺寸 Machine Size (L×W×H)	4200x1150x1700mm
机械重量 Net Weight	3500KG
操作语言 / Manipulation language	中文/英文 / Chinese/English

备注：

1.产品外观以实际产品为准，技术参数与型号如有变动，恕不另行通知。
The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.

2.了解更多前润科技产品信息请进入产品中心。服务热线：18028235969
For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969

行业应用 / Industry Applications

不干胶、吊牌、保护膜、丝带、铝箔等卷装材料。
Self-adhesive labels, hang tags, protective films, ribbons, aluminum foils and other roll materials.
食品、电子、药品
Food, Electronics, Pharmaceuticals.
