标签柔版印刷机_卫星式柔版印刷机_数码组合柔印机

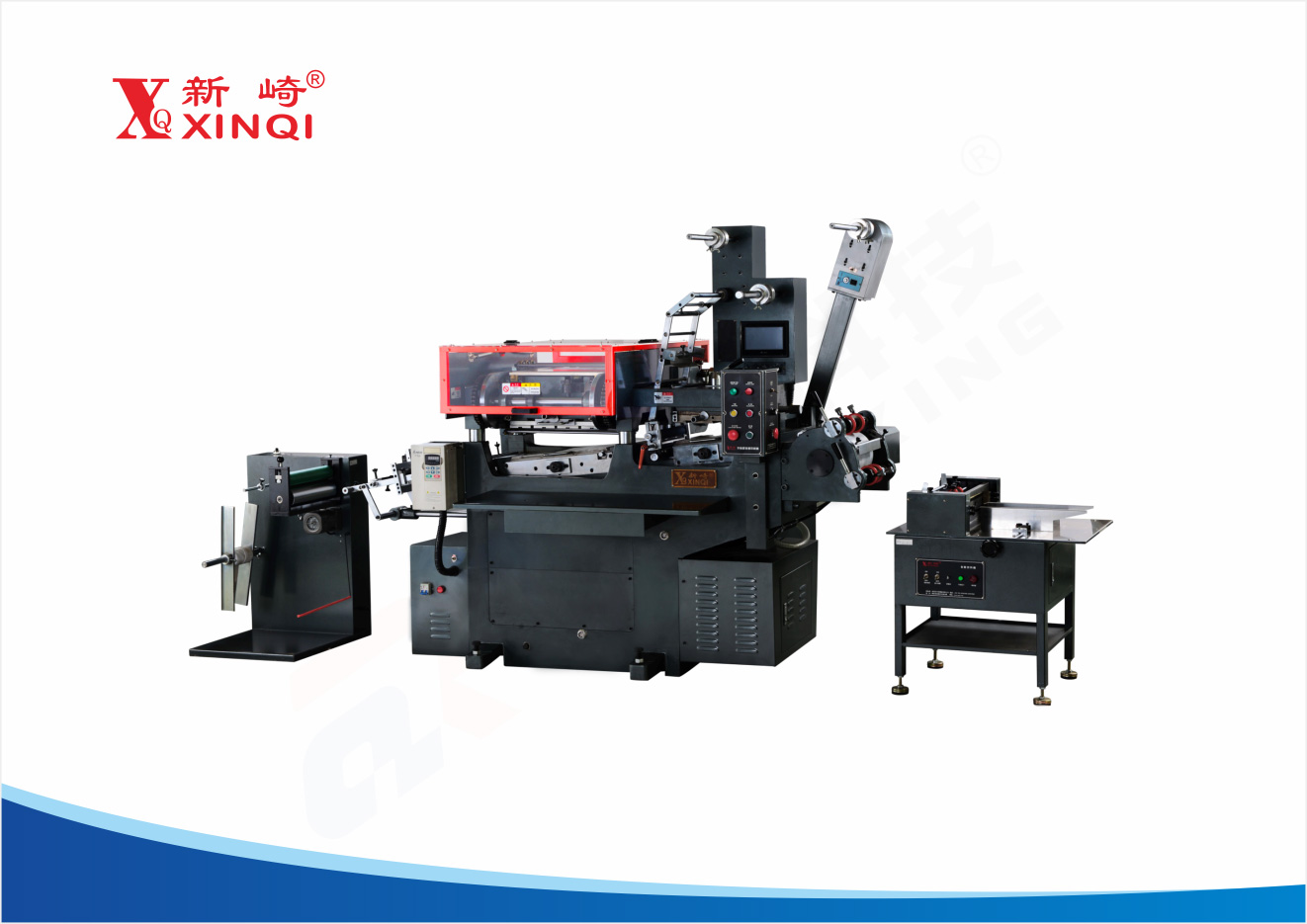

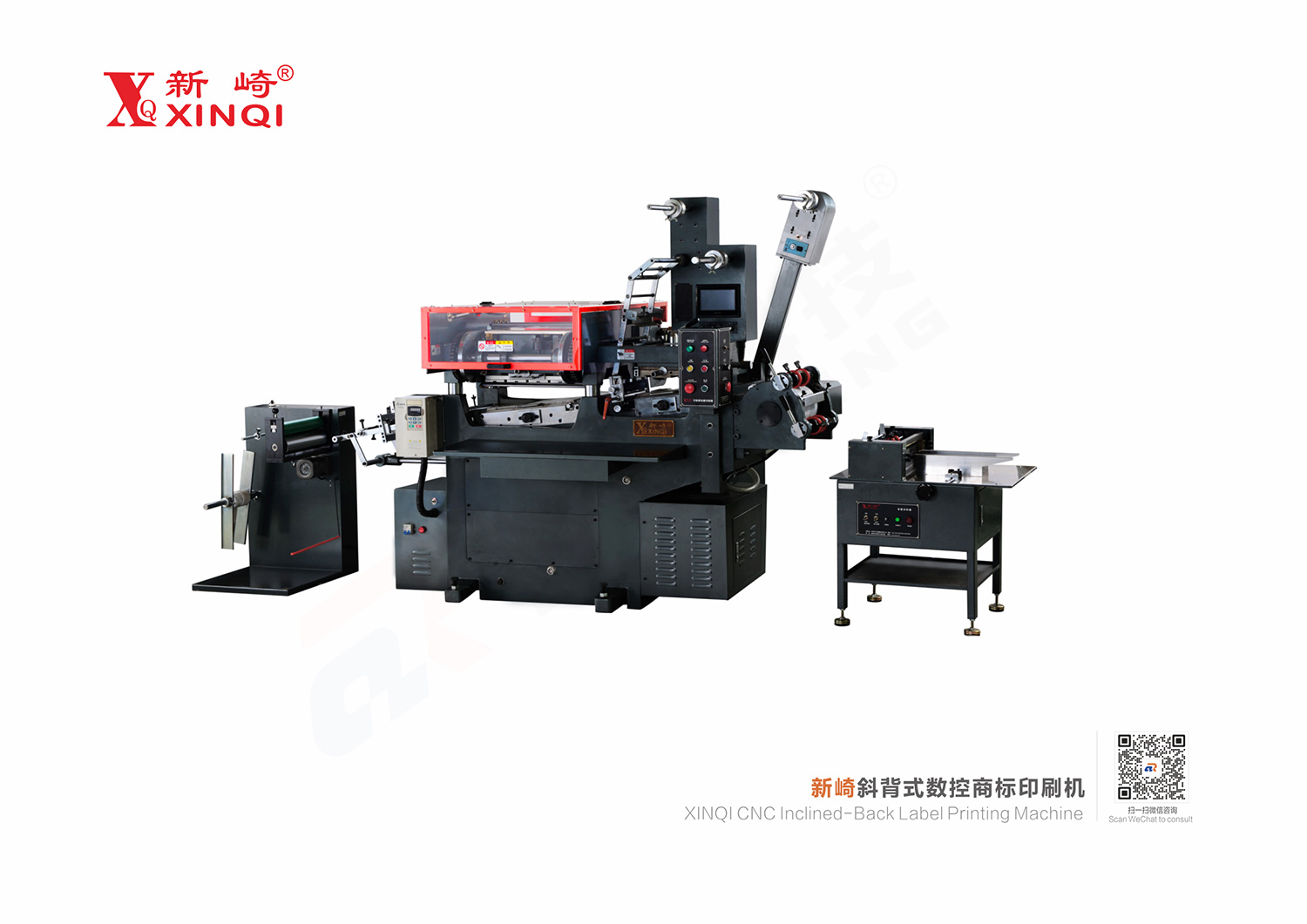

产品图片 / Product Images

产品介绍 / Product Introduction

1、操作简便，高速灵活，套位精确，自动送纸，印刷，覆膜，切张至成品一贯作业；
Simple operation, high speed and high flexibility with precise registration. It realizes one-stop automatic operations from automatic paper feeding, printing, laminating, slitting to finished products.

2、先进的匀墨方式，使着色更均匀；
Adopts an advanced ink distributing system for more uniform ink coloring.

3、拥有先进的自动控制系统，无纸即自动停机，计张到设定值则自动停机，CNC 电脑伺服拉纸系统，可二次印刷，多次重复印刷，反面印刷等；
Equipped with advanced automatic control system; it will stop automatically when out of paper or reaching the preset counting value. The CNC servo paper feeding system supports secondary printing, repeated overprinting, back side printing and more.

4、采用斜背式设计，印刷和模切在机械动作是以渐进方式接触，使压力得以平均，无论印大面积的底色或者细小字时都可以清晰无暇，模切可调整左右，上下，模线角度等；
Adopts inclined back design. Printing and die-cutting contact in a progressive mechanical way to ensure even pressure. It presents clear and flawless performance for large-area solid backgrounds and tiny texts. The die-cutting position is adjustable in horizontal, vertical and cutting line angle.

5、内置集中供油系统，保证高速运转噪音小，无磨损；
Built-in centralized lubrication system ensures low noise and low wear during high-speed operation.

6、采用单相电源输入，不受场地和动力配置的限制
Single-phase power input is adopted, free from site and power configuration restrictions.

7、墨辊及印刷上下底板位置有安装远红外感应安全门装置，更高安全保障。
Far-infrared induction safety doors are installed on ink rollers and upper & lower printing base plates to provide higher safety protection.

技术参数 / Technical Parameters

设备名称 Equipment Name	XQ-L210C 斜背式数控商标印刷机/Inclined-back CNC Label Printing Machine
机型 Type	XQ-L210C
二色印刷面积 Printing size 2Color(mm)	200x155mm
三色印刷面积 Printing size 3Color(mm)	200x100mm
四色印刷面积Printing size 4Color(mm)	200x72.5mm
最大模切面积 Max. Die-cut size(mm)	200x200mm
最大进纸宽度 Max paper width(mm)	210mm
最大拉距 Max paper length(mm)	300mm
最高印刷速度 Max paper speed(mm)	12000/
机械功率 Power/（V/kw）	220V/2.2kw
机械尺寸 Machine Size (L×W×H)	1950x1150x1700mm
机械重量 Net Weight	2200KG
操作语言 / Manipulation language	中文/英文 / Chinese/English

备注： 1.产品外观以实际产品为准，技术参数与型号如有变动，恕不另行通知。
The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.

2.了解更多前润科技产品信息请进入产品中心。服务热线：18028235969
For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969

行业应用 / Industry Applications

不干胶、吊牌、保护膜、丝带、铝箔等卷装材料。
Self-adhesive labels, hang tags, protective films, ribbons, aluminum foils and other roll materials.
食品、电子、药品
Food, Electronics, Pharmaceuticals.
