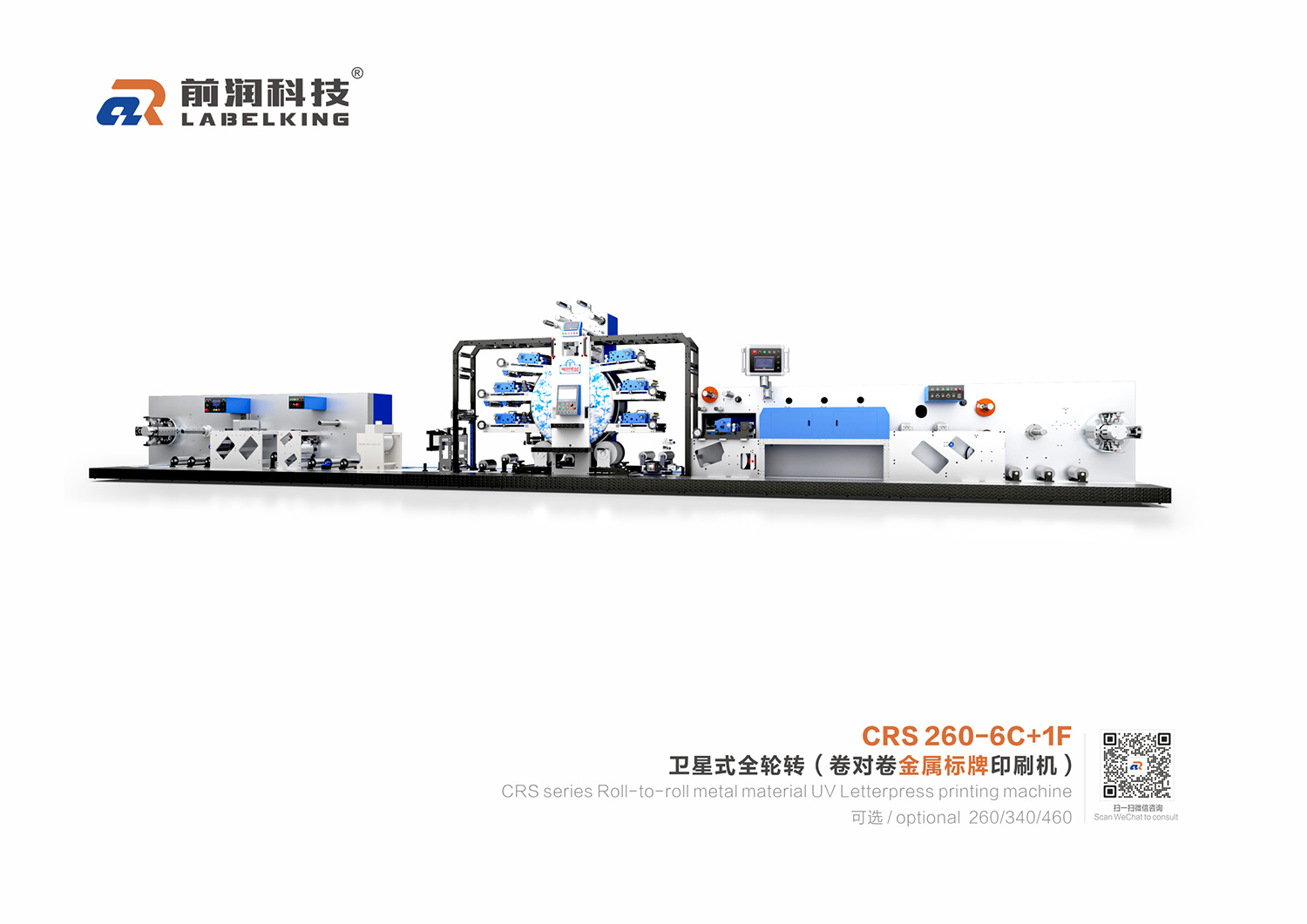

RS260-8C卫星式(金属标牌印刷机)全轮转标签印刷机

全轮转金属标牌印刷机，采用高速全轮转连续印刷结构，专为各类金属标牌、铭牌定制化生产设计。适用于铝板、马口铁等金属材质，可一次性完成多色套印、图文印刷与固化干燥。设备运行速度快、套印精准、墨层均匀牢固，印刷表层耐刮擦、耐腐蚀、久不褪色；整机全自动连续作业，换单快捷、生产损耗低，大幅提升金属标牌量产效率，±0.1mm套准精度印刷，可印刷精细图案与文字。适用于不锈钢、马口铁、铝箔等多种金属卷材。UV-LED固化系统，瞬间干燥，提升生产效率。伺服驱动系统确保材料平稳运行，避免变形。可选配烫金、模切等单元，满足多样化需求,广泛应用于工业设备铭牌、铝制标牌、五金标识、酒标等各类金属印刷领域。
The full rotary metal nameplate printing machine adopts a high-speed full rotary continuous printing structure, specially designed for the customized production of various metal nameplates and signs. It is suitable for metal materials such as aluminum plates, tinplate, stainless steel, aluminum foil and copper plates, capable of completing multi-color overprinting, graphic printing and curing drying in one go. The equipment runs at high speed with precise overprinting, uniform ink layer and firm adhesion. It has a registration accuracy of ±0.1mm, with scratch-resistant and corrosion-resistant printed surfaces that do not fade easily. The whole machine operates fully automatically and continuously, with quick order change, low material loss and controllable cost. It is equipped with UV-LED curing system and servo drive, which can print fine texts and complex patterns. It can be equipped with gold stamping, die-cutting and other units as required, and is widely used in industrial nameplates, hardware signs, wine labels and other metal printing fields.

1、卫星式全轮转印刷机，结构紧凑，操作方便。全伺服自动控制更进一步提升了机器的套准精度、工艺的灵活性及承印物的多元化。机器运转或停机时，可进行套准调停机启动，加减速套印不跑
Satellite full rotary printing machine features compact structure and easy operation. The full-servo automatic control further improves registration accuracy, process flexibility and substrate diversity. Registration adjustment can be performed whether the machine is running or stopped, and there is no registration deviation during start-up, shutdown, acceleration and deceleration.

2、相比普通商标机，套位更精准，速度可达 100M/min，印刷效果好，不变色，放墨更均匀。
Compared with ordinary label machines, it has higher registration accuracy, speed up to 100m/min, excellent printing quality, no discoloration and uniform ink output.

3、模切可用平刀和圆刀磁性滚轮模切系统。
Adopt flat blade and round blade magnetic roller die-cutting system for die cutting.

4、前中后冷烫，定位烫，局部烫，可同步完成，且烫金效果好，速度快。
Front, middle and rear cold stamping, positioning stamping and partial stamping can be finished synchronously with premium stamping effect and high speed.

5、可加背面印刷，实现背面同时多色印刷。
Optional back printing device to realize simultaneous multi-color printing on the reverse side.

6、除胶功能，底纸拨离，间隔除胶，局部除胶，同步涂胶及贴合。
Support glue removal, liner peeling, interval glue removal, partial glue removal, as well as synchronous gluing and laminating.

Available processes: multi-layer label production, 9-color combined front and reverse printing, partial degumming, front/middle/rear holographic positioning cold stamping, secondary automatic positioning die-cutting, in-line transfer film laminating and glue-free glossy film laminating.



标签类型/Suitable products:
      特殊酒标：红酒酒标、白酒标、白兰地洋酒等； Special wine labels: red wine labels, white wine labels, brandy and other foreign wine labels, etc.
      家居：厨房、卫浴间天花吊顶； Home applications: kitchen and bathroom ceiling materials.
      工业：文具盒、砂轮标盒等； Industrial applications: pencil cases, grinding wheel label boxes, etc.
      医药：口服胶囊固定板密封铝铂、药罐密封包装； Pharmaceutical applications: oral capsule blister sealing foil, medicine can sealing packaging.
      食品：罐头口密封包装； Food applications: can lid sealing packaging.
应用领域/Application Fields 不干胶标签 、食品包装、烟包酒标、物流商超、医药行业、电子行业、日化等印刷领域
       Adhesive Labels、Food Packaging、Cigarette & Wine Labels、Logistics & Supermarkets、Pharmaceutical Industry、Electronics Industry、Daily Chemicals & Other Printing Applications
非标定制 / Non-Standard Customization Service 可根据客户要求定做机型RS260/340/460 2-22色
       Customizable models (RS260/340/460)8-12色 available according to customer requirements.
