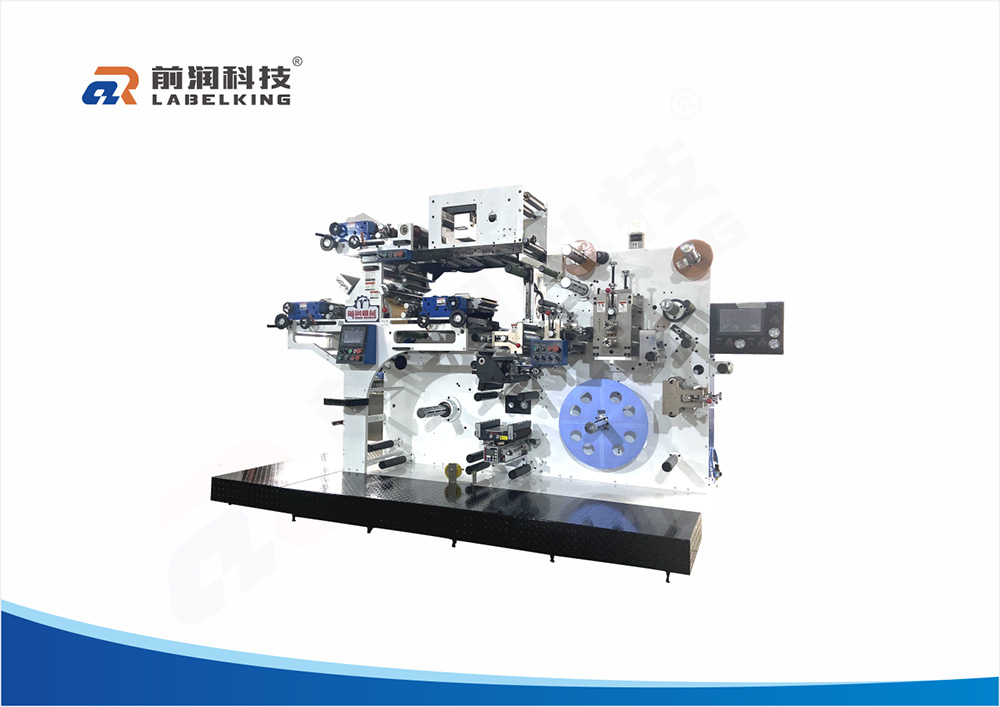

QIANRUN 3C RS series CI full rotary printing machine

1、 Satellite full rotary printing machine features compact structure and easy operation. The full-servo automatic control further improves registration accuracy, process flexibility and substrate diversity. Registration adjustment can be performed whether the machine is running or stopped, and there is no registration deviation during start-up, shutdown, acceleration and deceleration.

2、 Compared with ordinary label machines, it has higher registration accuracy, speed up to 100m/min, excellent printing quality, no discoloration and uniform ink output.

3、 Adopt flat blade and round blade magnetic roller die-cutting system for die cutting.

4、 Front, middle and rear cold stamping, positioning stamping and partial stamping can be finished synchronously with premium stamping effect and high speed.

5、 Optional back printing device to realize simultaneous multi-color printing on the reverse side.

6、 Support glue removal, liner peeling, interval glue removal, partial glue removal, as well as synchronous gluing and laminating.

7、 inkjet coding technology, applied to anti-counterfeiting barcode and label craftsmanship.

8、 Matched with quality inspection machine for automatic label supplement and intelligent inspection, effectively saving labor cost.

9、 Corona surface treatment device.

10、 Cylinder design guarantees printing registration accuracy, featuring compact structure and easy operation.

11、 Full-servo automatic control greatly improves registration accuracy, process flexibility and substrate diversity.

12、 Registration adjustment is available whether running or stopping. It adopts high-precision registration and stepless length registration; the lateral registration of each station is adjustable within ±5mm.

13、 Available processes: multi-layer label production, 9-color combined front and reverse printing, partial degumming, front/middle/rear holographic positioning cold stamping, secondary automatic positioning die-cutting, in-line transfer film laminating and glue-free glossy film laminating.

   Suitable products:
      Special wine labels: red wine labels, white wine labels, brandy and other foreign wine labels, etc.
      Home applications: kitchen and bathroom ceiling materials.
      Industrial applications: pencil cases, grinding wheel label boxes, etc.
      Pharmaceutical applications: oral capsule blister sealing foil, medicine can sealing packaging.
      Food applications: can lid sealing packaging.
   Application Fields Adhesive Labels、Food Packaging、Cigarette & Wine Labels、Logistics & Supermarkets、Pharmaceutical Industry、Electronics Industry、Daily Chemicals & Other Printing Applications

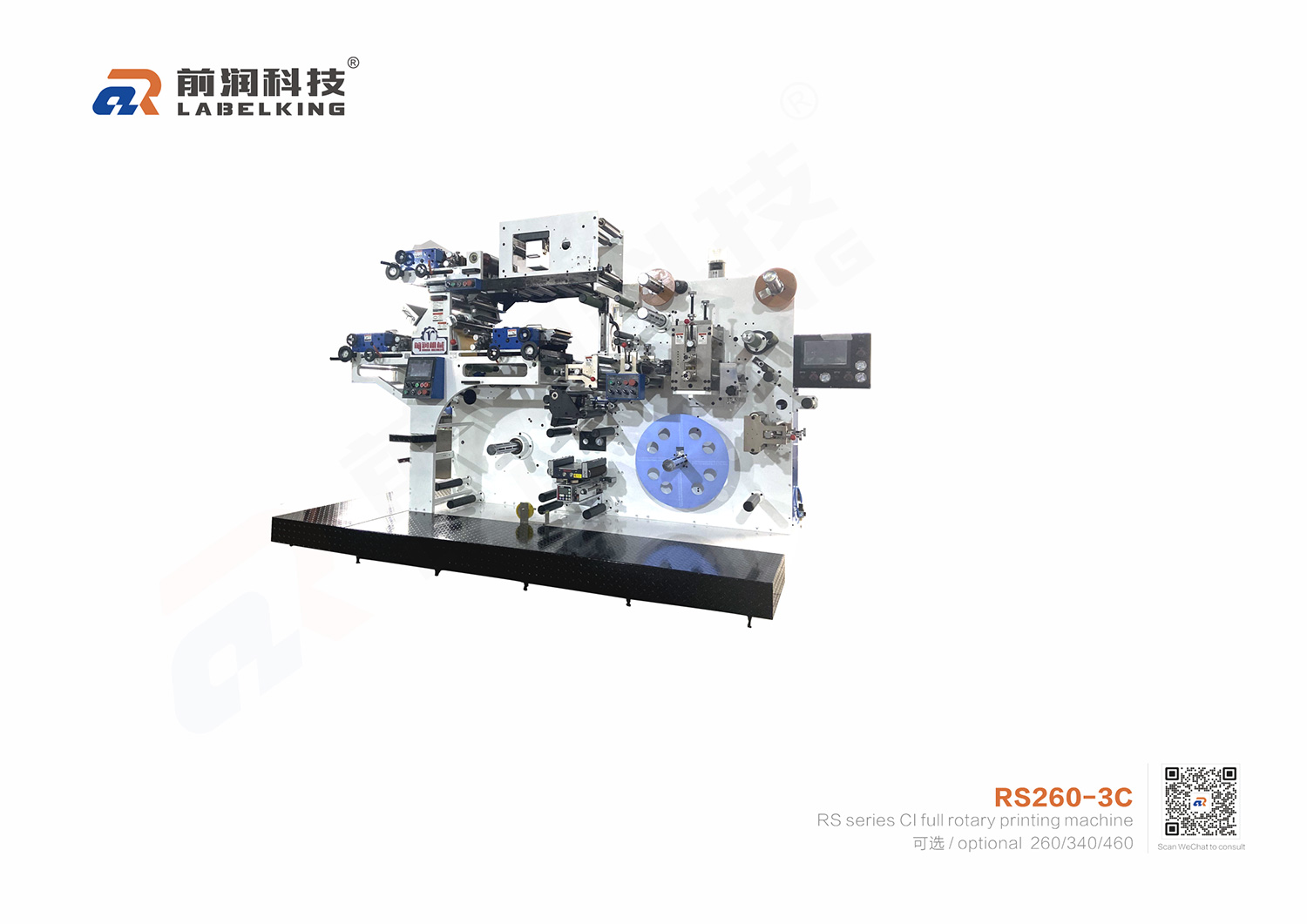

   Non-Standard Customization Service Customizable models (RS260/340/460)8-12C available according to customer requirements.
