800G/800F/800L Label Direct-to-Plate (DTP) Machine

Label Direct-to-Plate (DTP) Machine

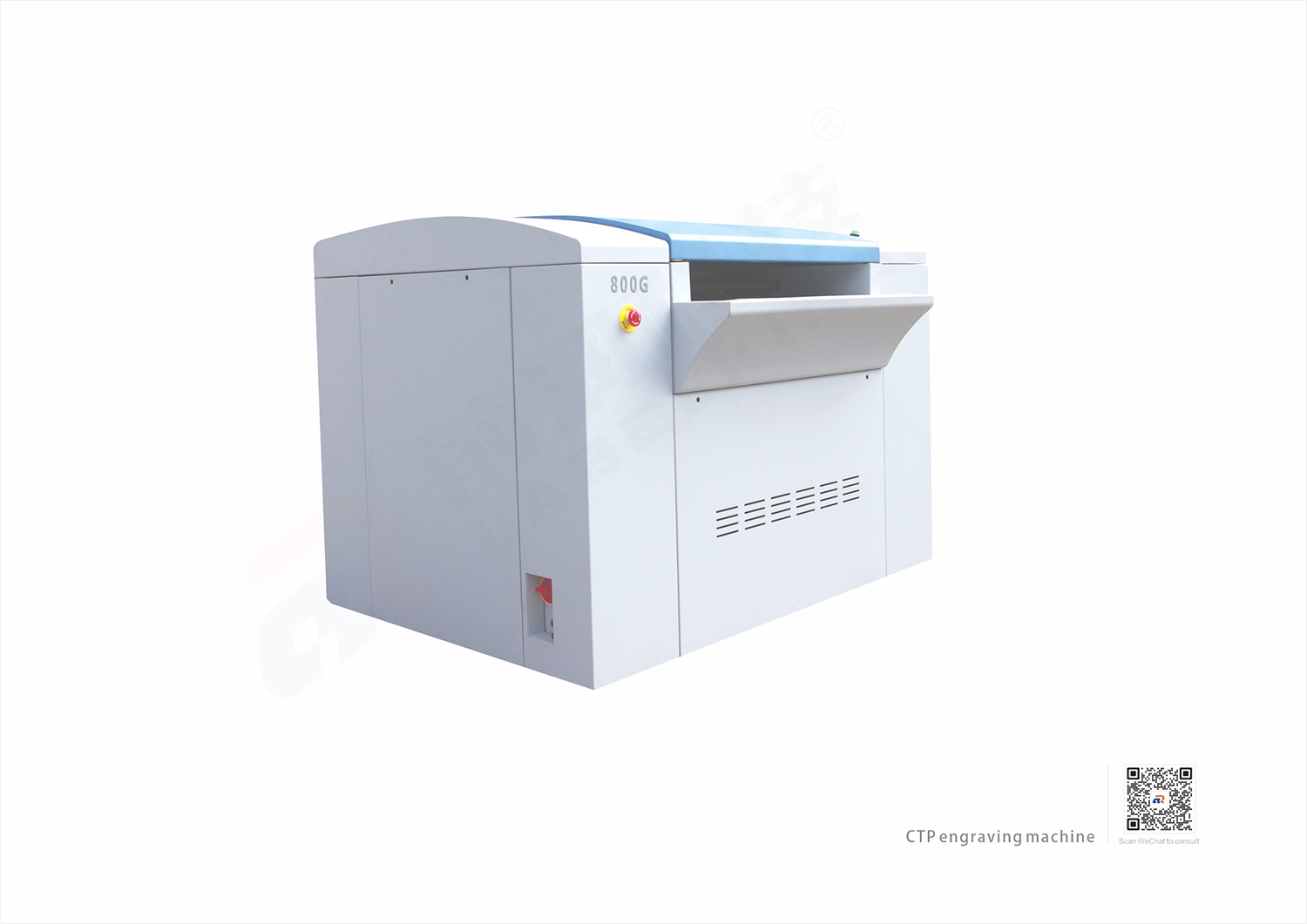

CTP engraving machine

Product Introduction:Product Images Product Introduction 1、Use of reliable external drum structure ensures accurate dot presented in the whole tone. 2、Selection different media, automatically matches different laser energy and drum speed. 3、Specially designed laser energy auto-calibration system to control the energy of each laser beam for the uniformity of exposure. 4、Adopt high-resolution encoder to located the drum to ensure the accuracy of the plate making. 5、Mature au

Application:Our equipment serves extensive printing sectors including food packaging, cigarette & wine labels, logistics & supermarket, pharmaceutical & daily chemical, and electronics. Custom solutions are available to meet personalized demands from various industries.

Customization:Customization is available to meet your specific requirements.

Note: Customers purchasing Qianrun label printing equipment enjoy free technical guidance, professional training, one-year warranty and lifelong maintenance service.

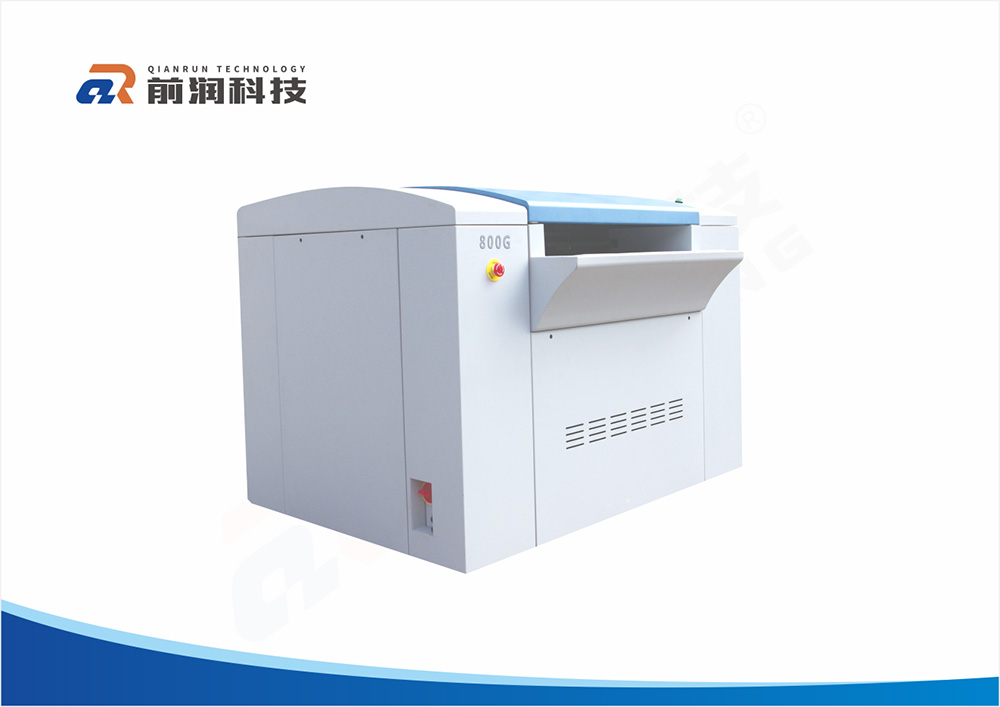

Product Images




Product Introduction

1、Use of reliable external drum structure ensures accurate dot presented in the whole tone.

2、Selection different media, automatically matches different laser energy and drum speed.

3、Specially designed laser energy auto-calibration system to control the energy of each laser beam for the uniformity of exposure.

4、Adopt high-resolution encoder to located the drum to ensure the accuracy of the plate making.

5、Mature automatic loading system can load and unload the appropriate format of the plate safely secured on the drum.

6、 Manual mounting system make the Plate format flexibility.

7、For different media with different automatic focusing system to ensure the quality of different media exposure.




Technical Parameters

Equipment Name 800G/800F/800L Label Direct-to-Plate (DTP) Machine
Type 800G 800F 800L
Plate type Digital flexographic plate/Digital resin plate/Thermal plate Digital flexographic plate/Digital resin plate Thermal plate
Exposure speed 1.5–3.5 ㎡/h 1.5 ㎡/h 3.5 ㎡/h
Resolution 4000dpi 4000dpi 4000dpi
 Drum architecture External External External
 Plate size Max:670×640mm/Min:250×254mm Max:635×735 Max:670×640mm/Min:250×254mm
Plate thickness 0.15–3mm 0.95–3mm 0.15–0.3mm
Machine dimension 1480(L)×1288(W)×1180(H) mm 1560(L)×975(W)×990(H) mm 1480(L)×1288(W)×1180(H) mm
Weight About 750kg About 750kg About 750kg
Environment recommended Temperature24-27℃、relative humidity 40-70% Temperature24-27℃、relative humidity 40-70% Temperature24-27℃、relative humidity 40-70%
Power supply AC220V±10%,3KW/AC220V±10%,3KW AC220V±10%,3KW/AC220V±10%,3KW AC220V±10%,3KW/AC220V±10%,3KW

Remarks: 1.The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.
                2.For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969



Industry Applications

   Application Fields        Self-adhesive labels, hang tags, protective films, ribbons, aluminum foils and other roll materials.
   Industry Application        Food, Electronics, Pharmaceuticals.
