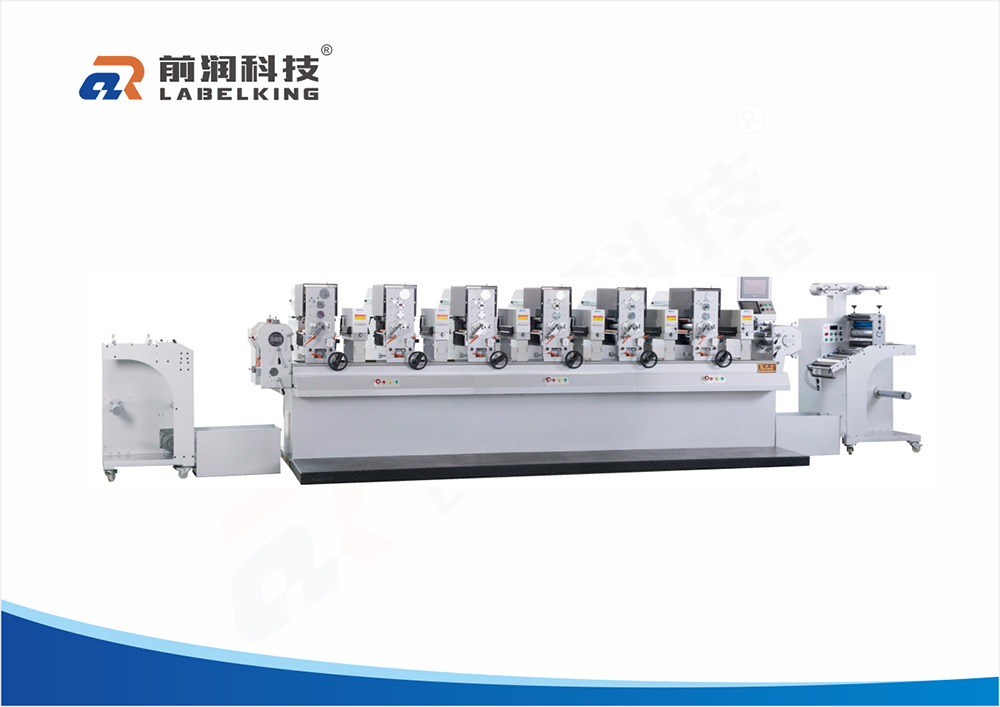

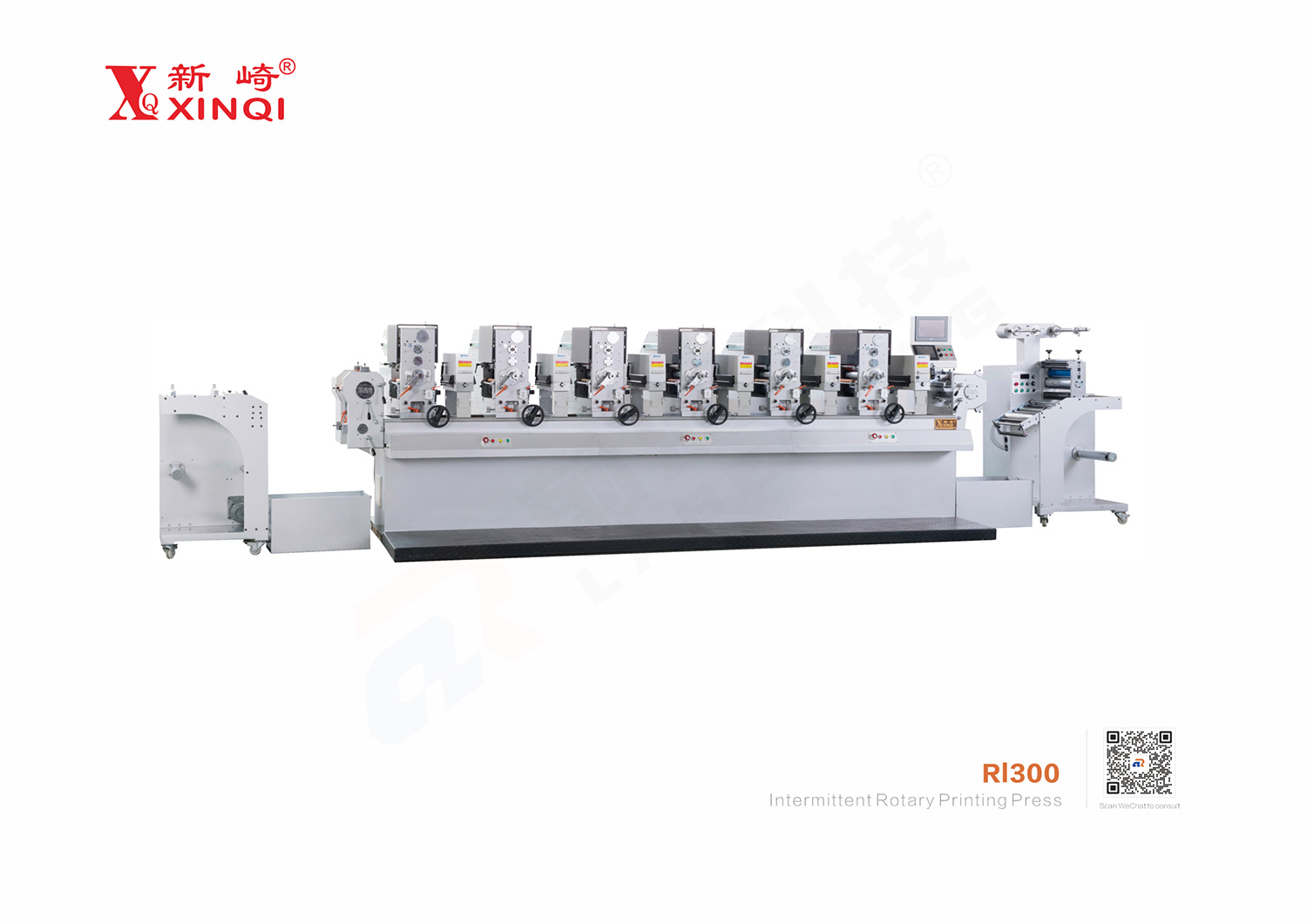

RI300 Intermittent Rotary Label Printing Machine

1、Satellite full rotary printing machine features compact structure and easy operation. The full-servo automatic control further improves registration accuracy, process flexibility and substrate diversity. Registration adjustment can be performed whether the machine is running or stopped, and there is no registration deviation during start-up, shutdown, acceleration and deceleration.

2、Compared with ordinary label machines, it has higher registration accuracy, speed up to 100m/min, excellent printing quality, no discoloration and uniform ink output.

3、Adopt flat blade and round blade magnetic roller die-cutting system for die cutting.

4、Front, middle and rear cold stamping, positioning stamping and partial stamping can be finished synchronously with premium stamping effect and high speed.

5、Optional back printing device to realize simultaneous multi-color printing on the reverse side.

6、Support glue removal, liner peeling, interval glue removal, partial glue removal, as well as synchronous gluing and laminating.

7、inkjet coding technology, applied to anti-counterfeiting barcode and label craftsmanship.

8、Matched with quality inspection machine for automatic label supplement and intelligent inspection, effectively saving labor cost.

9、Corona surface treatment device.

10、Cylinder design guarantees printing registration accuracy, featuring compact structure and easy operation.

11、Full-servo automatic control greatly improves registration accuracy, process flexibility and substrate diversity.

12、Registration adjustment is available whether running or stopping. It adopts high-precision registration and stepless length registration; the lateral registration of each station is adjustable within ±5mm.

13、Available processes: multi-layer label production, 9-color combined front and reverse printing, partial degumming, front/middle/rear holographic positioning cold stamping, secondary automatic positioning die-cutting, in-line transfer film laminating and glue-free glossy film laminating.

Designed for high-volume production, this advanced label printing machine integrates a fully servo-driven control system that ensures precise synchronization of all components, simplifying operation while delivering exceptional print quality and registration accuracy. The innovative online feeding and automatic correction device maintains consistent material tension and guarantees precise printing positioning, minimizing waste and maximizing output. It achieves high efficiency with a remarkable printing speed of up to 18000 meters per hour. The hybrid UV curing system, which combines efficient LED and mercury lamps, provides reliable and instant drying for various inks, ensuring superior print quality while offering significant energy savings and environmental benefits.
The machine offers remarkable operational flexibility with a printing plate that can be easily adjusted left/right, front/back, and diagonally, allowing for quick setup and fine-tuning. Its process configuration is highly versatile, capable of integrating optional modules for cold foil stamping, UV varnishing, front/back printing, and lamination in a single pass to meet diverse and customized client orders. A key feature for quality control is the integrated static observer, which magnifies the web speed dozens of times for real-time, clear visual inspection of print registration and position, ensuring consistent, high-quality output. This robust machine is an all-in-one solution comprising paper feeding, the main printing press, and rewinding with lamination, making it the ideal choice for demanding label production in various industries.

   Suitable products:
      Special wine labels: red wine labels, white wine labels, brandy and other foreign wine labels, etc.
      Home applications: kitchen and bathroom ceiling materials.
      Industrial applications: pencil cases, grinding wheel label boxes, etc.
      Pharmaceutical applications: oral capsule blister sealing foil, medicine can sealing packaging.
      Food applications: can lid sealing packaging.
   Application Fields Adhesive Labels、Food Packaging、Cigarette & Wine Labels、Logistics & Supermarkets、Pharmaceutical Industry、Electronics Industry、Daily Chemicals & Other Printing Applications
   Non-Standard Customization Service Customizable models (RS260/340/460)8-12C available according to customer requirements.
