XINQI Three-in-One Automatic Plate Maker

XINQI Three-in-One Automatic Plate Maker

Plate Maker

Product Introduction:Automatically control exposure time, plate washing time, drying time, vacuum degree and temperature to ensure the quality of resin plates. It is specially suitable for manufacturing high-line screen photosensitive resin printing plates.

Application:Our equipment serves extensive printing sectors including food packaging, cigarette & wine labels, logistics & supermarket, pharmaceutical & daily chemical, and electronics. Custom solutions are available to meet personalized demands from various industries.

Customization:Customization is available to meet your specific requirements.

Note: Customers purchasing Qianrun label printing equipment enjoy free technical guidance, professional training, one-year warranty and lifelong maintenance service.

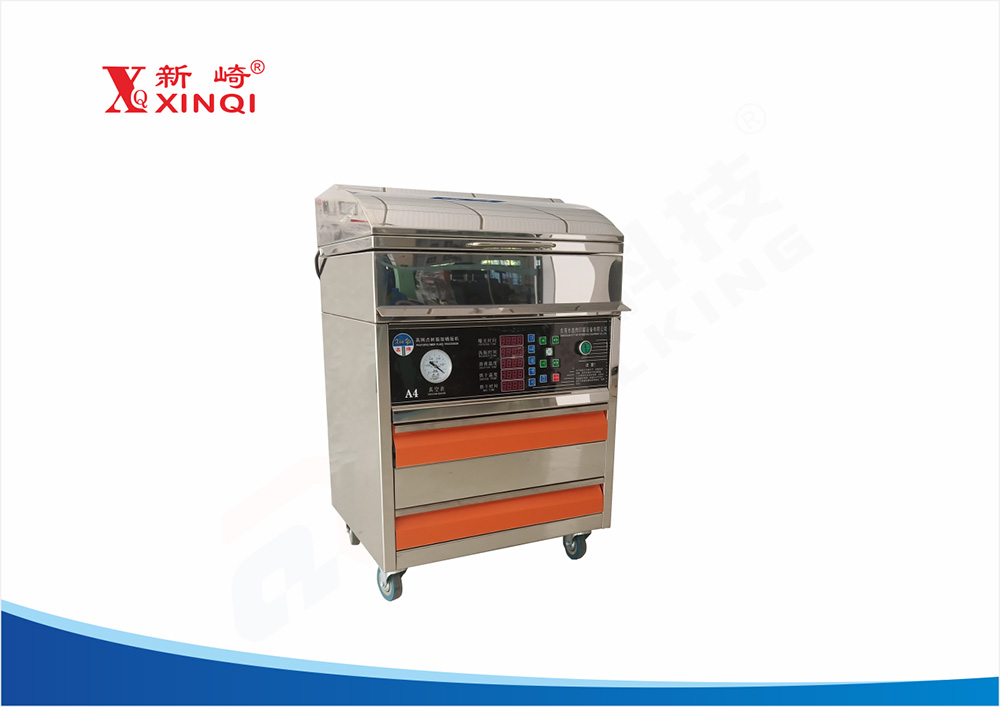

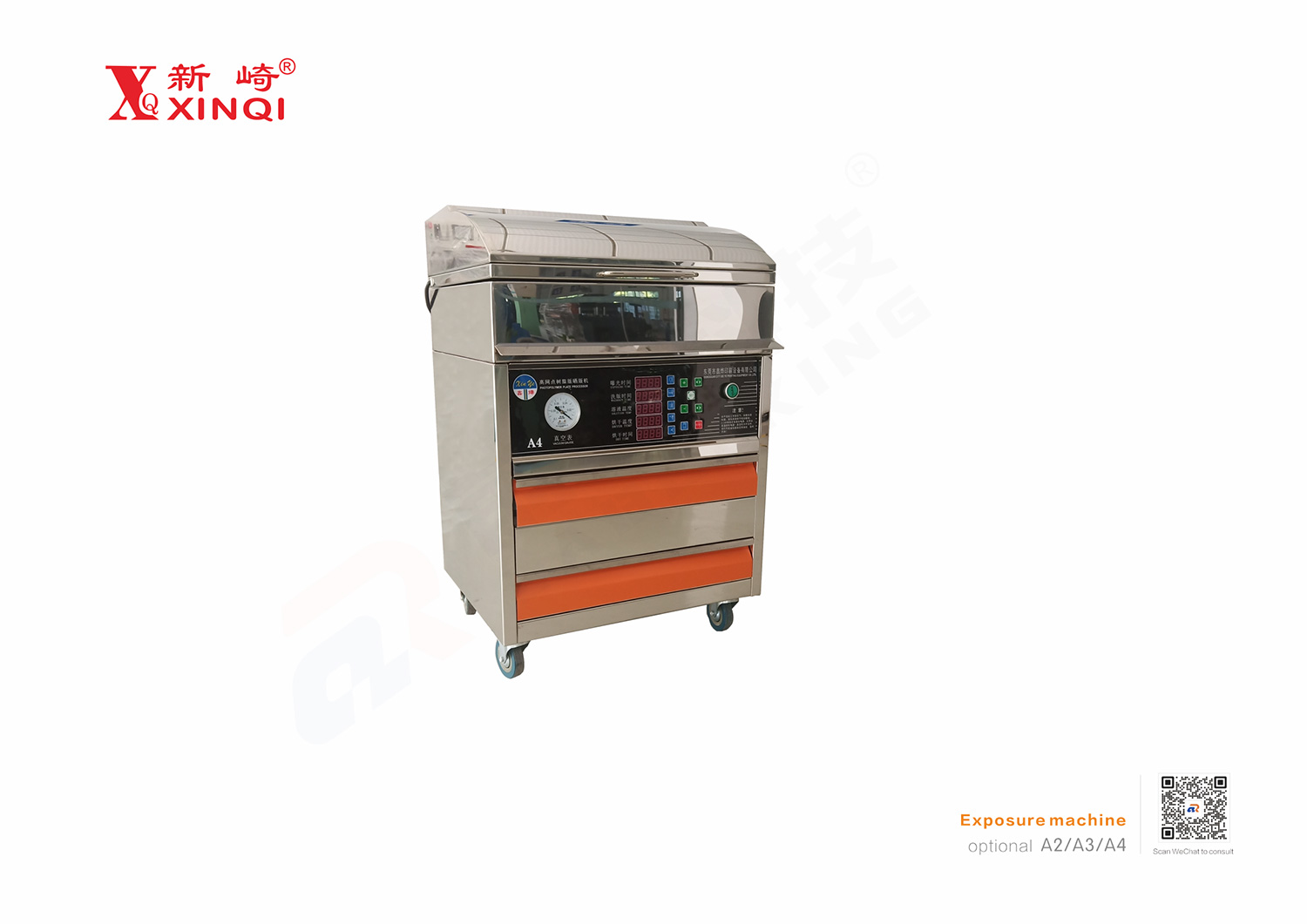

Product Images




Product Introduction

1、Automatically control exposure time, plate washing time, drying time, vacuum degree and temperature to ensure the quality of resin plates. It is specially suitable for manufacturing high-line screen photosensitive resin printing plates.
2、It is a three-in-one automatic plate maker integrating exposure, plate washing and drying, featuring stable performance and simple operation.
Product Features
1、Integrate three functions: exposure, plate washing and drying.
2、Adopt original imported PHILIPS UVA ultraviolet lamps.
3、Equipped with high-efficiency professional electronic ballast.
4、Circulating hot air drying with constant temperature and timing function.
5、Automatic plate adhesion for convenient operation.
6、Integrated structure, small floor area and easy operation.
tructural Configuration
1、40W PHILIPS ultraviolet exposure lamp
2、3AAA336 electronic ballast
3、Marble ultra-flat suction plate
4、apan imported vacuum suction film
5、1.8P Ruby vacuum pump
6、Japan imported self-adhesive material
7、Japan imported 1010 wire brush
8、Two-motor driven flat plate grinding device
9、Full stainless steel body shell




Technical Parameters

Equipment Name XINQI Three-in-One Automatic Plate Maker
Functions Integrates three functions: exposure, plate washing and drying.
Type A4 A3 A2
Max Plate Washing Area 400X250 530X420 600X450
Machine Dimension (L×W×H) 600X450x750mm 740X620X1000mm 760X620X1180mm
Machine Weight 60 kg 70 kg 160 kg
Machine Power Supply 220V / 0.3kW 220V / 0.6kW 2220V / 1.0kW
Manipulation language Chinese/English Chinese/English Chinese/English
Remarks: 1.The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.
                2.For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969



Industry Applications

   Application Fields        Self-adhesive labels, hang tags, protective films, ribbons, aluminum foils and other roll materials.
   Industry Application        Food, Electronics, Pharmaceuticals.



IProduct Videos
