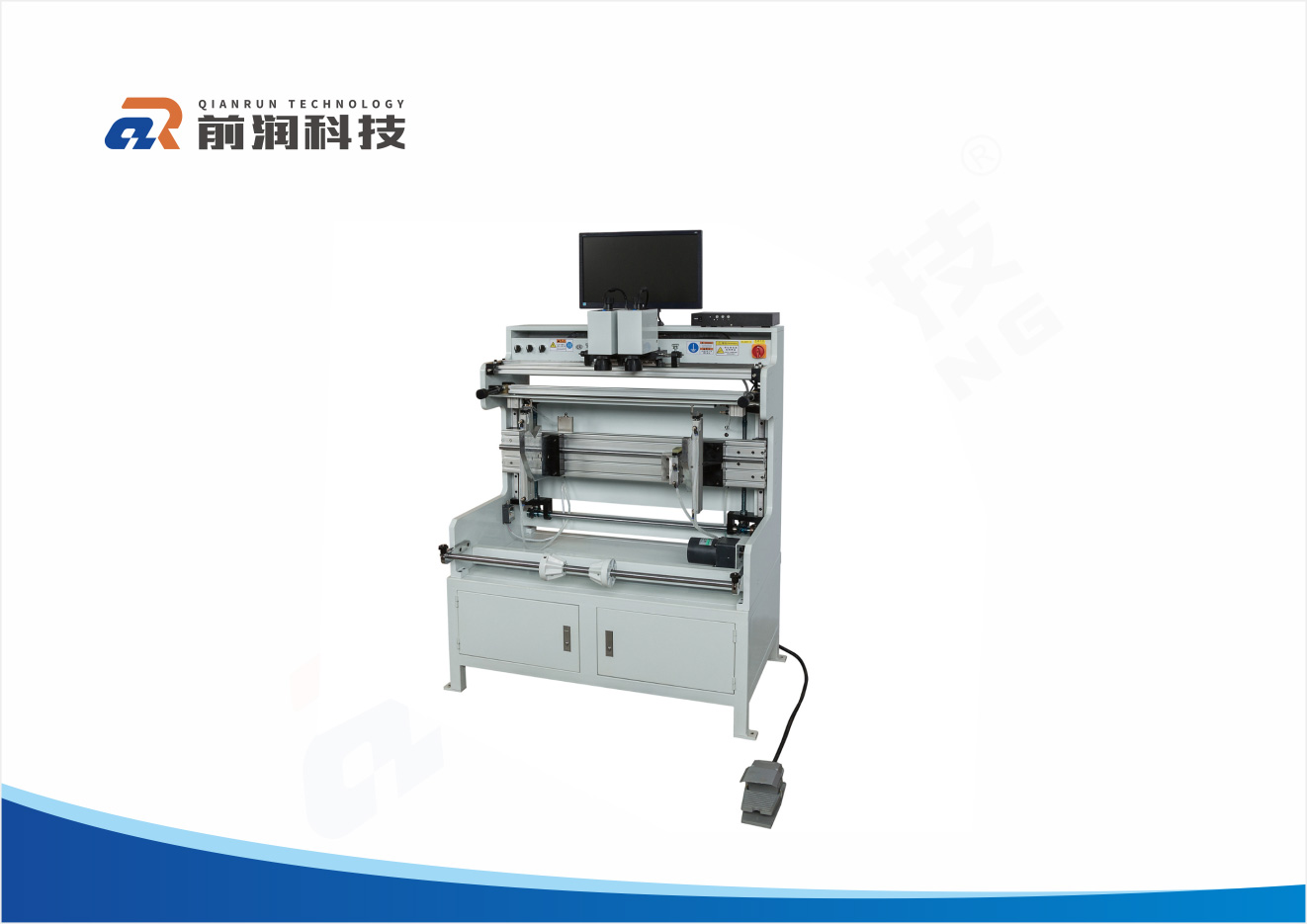

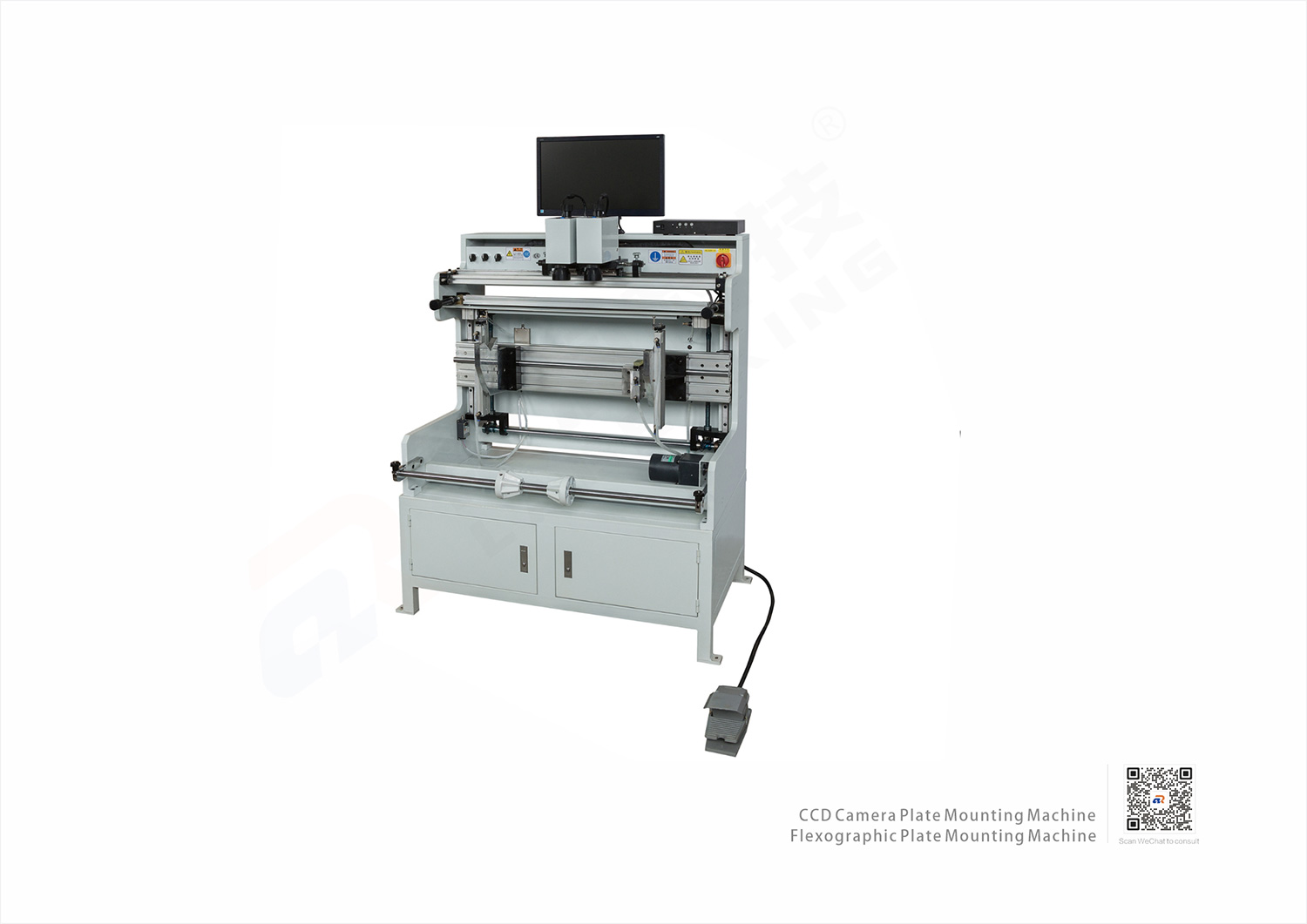

Product Introduction:Product Images Product Introduction This equipment is a key auxiliary device for flexographic printing and resin relief printing, specially designed to accurately align and mount printing plates onto plate cylinders. It uses a CCD camera and high-definition monitor for real-time magnified observation, enabling horizontal, vertical and diagonal fine-tuning of the plates to ensure registration accuracy. It significantly reduces plate mounting time and manual error
Application:Our equipment serves extensive printing sectors including food packaging, cigarette & wine labels, logistics & supermarket, pharmaceutical & daily chemical, and electronics. Custom solutions are available to meet personalized demands from various industries.
Customization:Customization is available to meet your specific requirements.
Note: Customers purchasing Qianrun label printing equipment enjoy free technical guidance, professional training, one-year warranty and lifelong maintenance service.

This equipment is a key auxiliary device for flexographic printing and resin relief printing, specially designed to accurately align and mount printing plates onto plate cylinders. It uses a CCD camera and high-definition monitor for real-time magnified observation, enabling horizontal, vertical and diagonal fine-tuning of the plates to ensure registration accuracy. It significantly reduces plate mounting time and manual errors, lowering waste caused by misalignment. The machine is compatible with flexographic and resin relief printing machines of different brands and specifications, supporting various plate sizes and thicknesses. It is an essential device for improving the printing quality of labels and flexible packaging.
1、High-precision CCD visual alignment with controllable registration error
2、Multi-dimensional fine-tuning (horizontal, vertical and diagonal) supported
3、Compatible with various sizes of flexographic plates and resin relief plates
4、Electric fine-tuning with foot switch for easy operation
5、Greatly improves plate mounting efficiency and reduces trial waste
Advantages
6、Significantly improved accuracy and efficiency compared with traditional manual mounting
7、Reduces manual alignment errors and lowers waste rate
8、High compatibility with printing machines of various brands
9、Easy to operate without complex training
| Equipment Name | Flexographic Plate Mounting Machine with CCD Visual Alignment | |||
| Type | 650 | |||
| Max. mounting width | 650mm (customizable) | |||
| Alignment accuracy: | ±0.01mm | |||
| Power supply: | 220V 50Hz | |||
| Applicable plates: | Flexographic plates, resin relief plates | |||
| Manipulation language | Chinese/English | |||
